1. Introduction
The Distributed Optical Fiber Temperature and Strain Sensing System developed byYoubopto is a complex system based on a number of patented technologies, integrated with optical, mechanical, electronic modules and software algorithms. It features in excellent technical specifications and user-friendly interface.
Owing to its fiber loop configuration, loop-sensing BOTDA can significantly enhance Brillouin signal strength, optimize SNR, improve measurement accuracy, and shorten measurement time. Using optical fiber as signal transmission and measurement media, the system has anti-jamming, anti-explosion and excellent performance of chemical resistance, is suitable for chemical, high voltage, nuclear and other dangerous environments. The real-time fault monitoring system has been widely used in important projects monitoring submarine cable, high-voltage cables, overhead lines, oil and gas pipelines, dams and bridges.

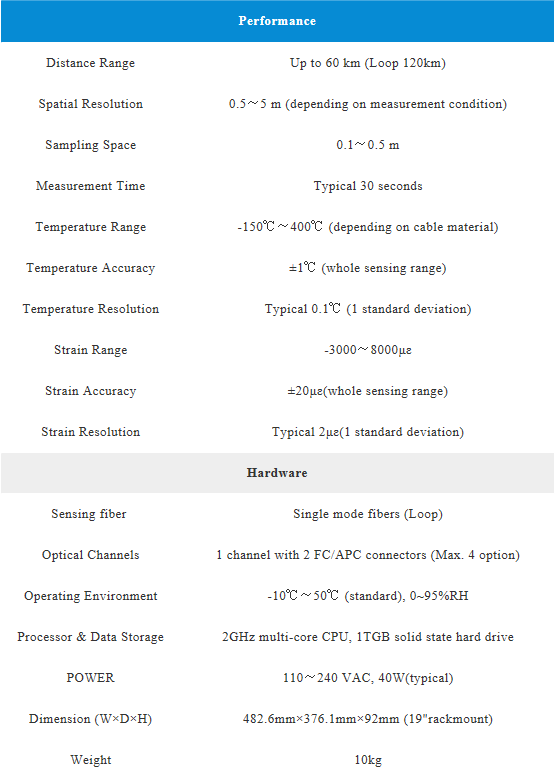

2. Features
>Distance range up to 60km (loop 120km)
>Spatial resolution 0.5-5m (depending on measurement condition)
>Temperature accuracy ±1℃ (whole sensing range)
>Strain accuracy ±20με (whole sensing range)
3. Applications
>Power line monitoring
>Structural health monitoring
>Pipeline monitoring
>Submarine cable monitoring
